Creating a Terrain Profile for DTV RF Propagation Analysis



ATTN: This tutorial only works for FireFox, do not use IE, the profile website doesn't work with IE for some reason.

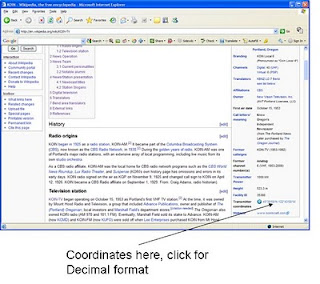

Step 1: Determine the coordinates of the transmitter (in decimal format by clicking on the coordinates in Wikipedia, uses geohack)

http://en.wikipedia.org/wiki/KOIN-TV



Step 2: Determine the coordinates of the receiver location (your house), also in decimal format. This step can be skipped as you can click directly on the map in step #3 to locate the receiver location.

http://mapki.com/getLonLat.php


Step 3: Create a profile using the coordinates from above. Enter the coordinates as 45.51611,-122.732778

http://www.heywhatsthat.com/profiler-0904.html



Step 4: Adjust the height above terrain for the transmitter and receiver by clicking on the height hyperlink next to the coordinates.


Step 5: Note if you have line of sight (LOS) and the distance of the path. The path distance will be used later when we calculate path loss and link budgets.


Friday, April 16, 2010

Determining receiver sensitivity using kTB, NF, and S/N requirement


Receiver sensitivity is the minimum input signal required to produce a required signal to noise ratio. In other words, it answers the common question in virtually any communication system "Is my signal good enough?"

Many system specifics are based on receiver sensitivity. For example, in a cellular system it can help you determine "good" coverage from a cell tower antenna. In digital TV receiver sensitivity can be used to determine if you need an antenna on your house to have a 'good' signal.

In test and measurement, receiver sensitivity is used to determine what is required to make a 'good' (accurate & repeatable) measurement. If you know the receiver sensitivity for a spectrum analyzer for example, you can make judgments about the quality of measurements and how to best setup the measurement.

Calculating rx_sens (receiver sensitivity) is pretty straight forward.

Step 1: Calculate kTB (noise floor) for the bandwidth of interest
where:
k = Boltzmann constant (1.38*10E-23)
T = temperature in Kelvin
B = bandwidth of interest in Hertz

Step 2: Convert to dBm
30+10*log(kTB)

For example: For a bandwidth of 30KHz
example: For a signal with a bandwidth of be 30Khz
Noise Floor = kTB = 1.38E-23 * 300 * 30000 = -129dBm

Step 3: Estimate receiver senstivtiy
Rx_sens = Noise Floor + NF of the receiver + S/N required

Example: For 10dB noise figure receiver, with a 20dB S/N requirement:
RX_Sens = -129dBm + 10dB + 20dB = -99dBm

Now we know what level we need at the receiver. Stay tuned for the next post regarding link budgets. We'll see how to use this number in our link calculations to determine if the transmitted power level is 'good enough' to meet our RX_Sens requirement.
