Wednesday, February 10, 2010
DSP: Noise Averaging WCDMA Example
The following example show noise averaging affects for a WCDMA signal. Coherent averages were taken of a WCDMA signal with additive noise k=.1.
The first plot shows a pure WCDMA modulated signal with additive noise.
Next, the signal is plotted with three (3) noise averages:

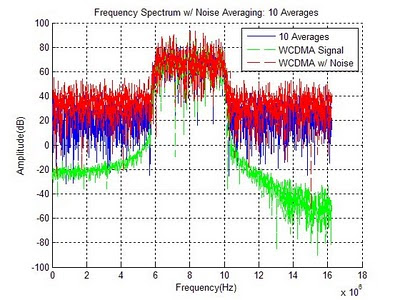

Finally, ten (10) averages are simulated:

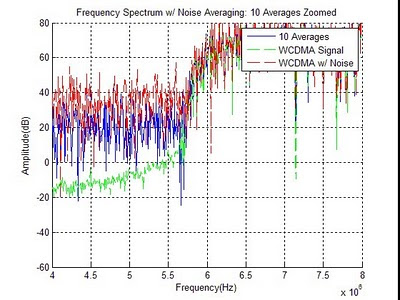

The plot below shows a zoomed in area of the shoulder.
The first plot shows a pure WCDMA modulated signal with additive noise.
Next, the signal is plotted with three (3) noise averages:
Finally, ten (10) averages are simulated:
The plot below shows a zoomed in area of the shoulder.
